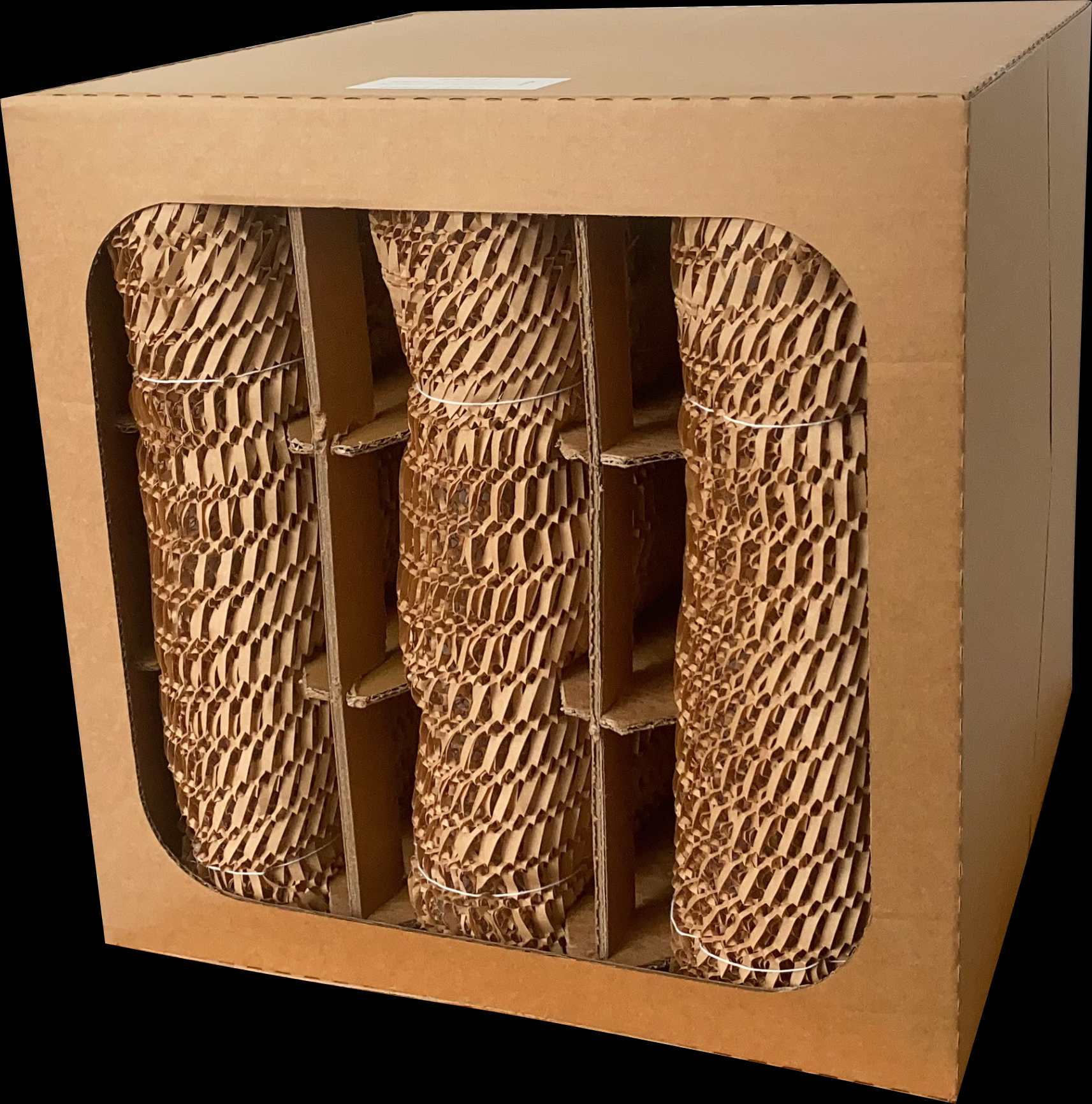

Paint Mist Filter (Paper Cartridge Type)
Material
Outer Frame: DIN 4102 B1 – Flame-Retardant Carton
Product Advantages
1、This type of paint mist collector features simple operation and an innovative design, providing economical, efficient, and long-lasting dry separation effects for painting workshops.
2、The carton is made of flame-retardant corrugated cardboard, which ensures greater safety and stability during use in environments with high-density water-based coatings and high-humidity overspray mist.
3、Over 99% of the overspray mist is adsorbed on the filter material inside the collector, and the design of the 3D three-dimensional honeycomb material ensures optimal adsorption efficiency and a larger paint-holding capacity.
4、The waste disposal cost is low, making it environmentally friendly and convenient.
Application
An efficient dry separation system for painting workshops, used as the primary filter for collecting overspray mist.
Operating Environment
Temperature Resistance Performance：70℃
Moisture Resistance Performance：75%RH
Performance Parameters
|
Model |
Paint Mist Collection Efficiency (%) |
Rated Airflow (m³/h) |
Initial Resistance （Pa） |
Recommended Final Resistance （Pa） |
Maximum Paint-Holding Capacity (kg/piece) |
Filter Area (㎡) |
|
485x485x495-2V |
>98 |
1700 | 60 | 450 | Water-Based Paint：18 | 1 |
| 485x485x495-2V | >98 | 1700 |
60 |
450 |
Solvent-Based Paint：12 |
1 |
|
485x485x495-3V |
>98 |
1700 |
60 |
450 |
Water-Based Paint：17 |
1.5 |
|
485x485x495-3V |
>98 |
1700 |
60 |
450 |
Solvent-Based Paint：13 |
1.5 |
Remarks: Special sizes or specifications can be customized according to customer requirements.
