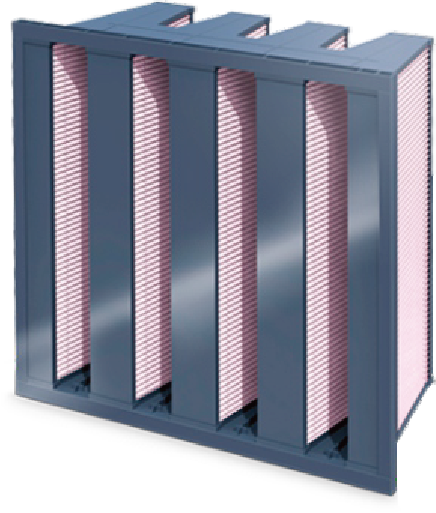

Chemical Filter (V Type)
Material
Describe
Product Advantages
1、Easy to install and maintain
2、High structural strength
3、High removal efficiency
4、Strong adsorption capacity
Application
In ventilation and air conditioning systems, various odorous pollutant gases are removed, such as in offices, hotels, airports, electronics factories, etc.
Operating Environment
Temperature Resistance Performance：50℃
Moisture Resistance Performance：70%RH
Performance Parameters
|
Model |
Dimension W×H×D (mm) |
V-groove (V) |
Filter Class EN779 |
Rated Airflow (m³/h) |
Initial Resistance （Pa） |
Filter Area (㎡) |
| V4G4-K1x25-592x592x292-T7-H4-2 | 592x592x292 | 4 | G4 | 1500 | 105 | 12 |
| V3G4-K1x25-490x592x292-T7-H4-2 | 490x592x292 | 3 | G4 | 2800 | 105 | 10 |
| V2G4-K1x25-287x592x292-T7-H4-2 | 287x592x292 | 2 | G4 | 3400 | 105 | 5.3 |
Remarks: Special sizes or specifications can be customized according to customer requirements.
