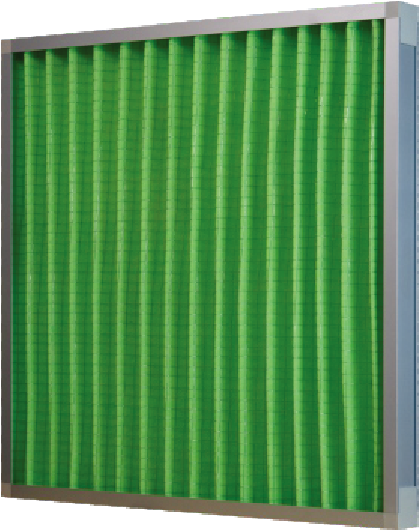

Plate Filter(Mesh-Coated Dense Pleat)
Describe
Product Advantages
1、High dust holding capacity
2、Low resistance
3、Good fire resistance
4、Sturdy structure
5、Easy to install
Application
Used in air conditioning and ventilation systems of industrial plants to prevent internal contamination of the systems and extend the service life of high-efficiency filters.
Operating Environment
Temperature Resistance Performance：70℃
Moisture Resistance Performance：100%RH
Performance Parameters
| Model |
Dimension W×H×D (mm) |
Filter Class EN779 |
Rated Airflow (m³/h) |
Initial Resistance (Pa) |
Recommended Final Resistance (Pa) |
| C2G2-A46AL-592x592x46-0-GLB3 | 592x592x46 | G2 | 3400 | 50 | 200 |
| C2G2-A46AL-490x592x46-0-GLB3 | 490x592x46 | G2 | 2800 | 50 | 200 |
| C2G2-A46AL-290x592x46-0-GLB3 | 290x592x46 | G2 | 1700 | 50 | 200 |
| C2G3-A46AL-592x592x46-0-GLB5 | 592x592x46 | G3 | 3400 | 65 | 200 |
| C2G3-A46AL-490x592x46-0-GLB5 | 490x592x46 | G3 | 2800 | 65 | 200 |
| C2G3-A46AL-290x592x46-0-GLB5 | 290x592x46 | G3 | 1700 | 65 | 200 |
| C2G4-A46AL-592x592x46-0-GLB8 | 592x592x46 | G4 | 3400 | 80 | 250 |
| C2G4-A46AL-490x592x46-0-GLB8 | 490x592x46 | G4 | 2800 | 80 | 250 |
| C2G4-A46AL-290x592x46-0-GLB8 | 290x592x46 | G4 | 1700 | 80 | 250 |
Note: Special sizes or specifications can be customized according to customer requirements
